185311-1

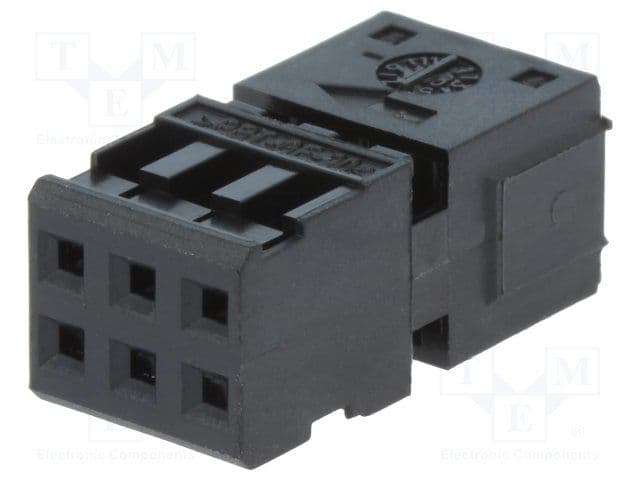

6 Pos PBT Black Rectangular Connector, Female Socket, Wire-to-Wire

Automotive connector receptacle housing, designed for wire-to-wire applications, features a 6-position, 2-row configuration with a 2.54mm pitch. This female connector, constructed from black PBT with a UL94 HB flammability rating, supports signal circuit applications and accepts 0.025-inch mating tabs. Operating within a temperature range of -40°C to 212°C, it offers a straight, free-hanging orientation and is RoHS and ELV compliant.

MountingFree Hanging

PolarityYes

Quick Jump:

Technical Specifications

TE Connectivity 185311-1 technical specifications.

General

Body Material	PBT
Circuit Application	Signal
Color	Black
Connector System	Wire-to-Wire
Contact Type	Female Socket
Depth	16mm
ELV	Compliant
Flammability Rating	UL94 HB
Gender	Female
Height	0.264inch
Housing Color	Black
Hybrid Connector	No
Length	8.02mm
Mating Tab Width	0.025inch
Max Operating Temperature	212°C
Min Operating Temperature	-40°C
Mount	Free Hanging
Number of Contacts	6
Number of Positions	6
Number of Rows	2
Orientation	Straight
Package Quantity	7000
Packaging	Box
Pitch	2.54mm
Polarized	Yes
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	0.1inch
Sealable	No (Without)
Serviceable	Yes
Strain Relief	No (Without)
Width	0.63inch
