8-position, 2-row female socket strip for board-to-board applications. Features a 1.27mm pitch and straight, top-entry SMD termination. Contact current rating of 1A, with a 1.5A overall current rating. Insulation material is Nylon with a UL94 V-0 flammability rating. Operating temperature range from -40°C to 105°C. Includes board standoff and mating alignment features.
Voltage Rating230V
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 188275-8 technical specifications.
General
| Board Standoff | Yes (With) |
| Color | Red |
| Connector System | Board-to-Board |
| Contact Current Rating | 1A |
| Contact Finish - Mating | TIN |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 1.5A |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Height | 0.21inch |
| Housing Color | Red |
| Insulation Color | Red |
| Insulation Material | Nylon |
| Length | 12.2mm |
| Mating Alignment | Yes (With) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 100V |
| Max Voltage Rating (DC) | 100.1kV |
| Mount | Surface Mount |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Micro-MaTch |
| Shrouded | No (Without) |
| Termination | SMD/SMT |
| Voltage Rating | 230V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 188275-8 Datasheet
Download the complete datasheet for TE Connectivity 188275-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

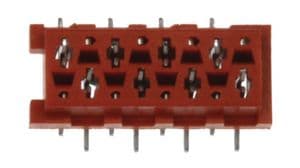

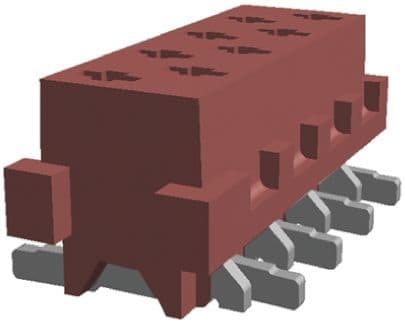

Product Images
