36-position, 2-row right-angle surface mount receptacle for signal applications. Features 0.8mm pitch, gold-plated bronze contacts rated for 500mA, and a 0.1102-inch contact post length. Designed for cable-to-board connectivity with a single port and keyed configuration. Operates within a temperature range of -67°C to 221°C, with a high-temperature housing. Packaged in tape and reel for automated assembly.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1888019-6 technical specifications.
General
Circuit Application
Signal
Connector System
Cable-to-Board
Contact Current Rating
500mA
Contact Material
Bronze
Contact Plating
Gold
Contact Post Length
0.1102inch
Gender
Receptacle
High Temperature Housing
Yes
Keyed
Yes
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Surface Mount
Number of Contacts
36
Number of Ports
1
Number of Positions
36
Number of Rows
2
Orientation
Right Angle
Package Quantity
125
Packaging
Tape and Reel
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
0.8mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
EVERCLEAR
Stackable
No
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1888019-6 Datasheet
Download the complete datasheet for TE Connectivity 1888019-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

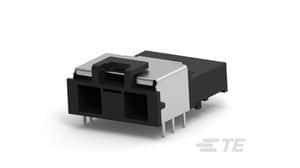

Product Images
