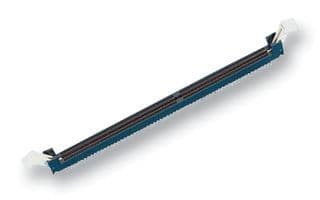

240 Pos Vertical DDR3 DIMM Header, 0.039" Pitch, Gold/Tin Plated

TE Connectivity

1932000-1

Name: 1932000-1 TE Connectivity
Brand: TE Connectivity
SKU: 1932000-1

240 Pos Vertical DDR3 DIMM Header, 0.039" Pitch, Gold/Tin Plated

240-position vertical DDR3 DIMM header, female, with a 0.039-inch pitch and 0.075-inch row spacing. Features a 750mA contact current rating, copper alloy contacts with gold, tin, and matte plating, and a 2.67mm contact post length. Constructed with a natural colored nylon housing and insulation, this connector system is designed for board-to-board applications with through-hole mounting and solder termination. Operating temperature range is -55°C to 155°C, with a 1.5V voltage rating and UL94 V-0 flammability rating.

Voltage Rating1.5V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1932000-1 technical specifications.

General

Circuit Application	Signal
Color	Natural
Connector System	Board-to-Board
Contact Current Rating	750mA
Contact Material	Copper Alloy
Contact Plating	Gold, Tin, Matte
Contact Post Length	2.67mm
Depth	7.54mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Natural
Insulation Material	Nylon
Length	141mm
Material	Nylon
Max Operating Temperature	155°C
Memory Type	SDRAM
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	240
Number of Positions	240
Number of Rows	2
Orientation	Straight
Package Quantity	50
Packaging	Tray
PCB Mount Retention	With
Pitch	0.039inch
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.075inch
Sealable	No (Without)
Termination	Solder
Voltage Rating	1.5V
