Power socket contact for wire-to-wire connector systems, designed for 12-14 AWG discrete wire. Features a 32A contact current rating and 600V voltage rating, with a straight orientation and crimp termination. Constructed from copper alloy with silver plating over nickel underplate, it operates within a temperature range of -67°C to 221°C. This lead-free, RoHS-compliant component is UL and VDE tested.
Voltage Rating600V
Current Rating31A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 193842-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
32A
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Silver
Contact Retention
No (Without)
Contact Style
Socket
Contact Type
Power
Current Rating
31A
Depth
3.78mm
Height
3.78mm
Lead Free
Lead Free
Length
27.9mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
100
Packaging
Bag
Plating
Silver
Plating Thickness
1.02um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Universal MATE-N-LOK II
Termination
Crimp
Underplate Material
Nickel
VDE Tested
Yes
Voltage Rating
600V
Voltage Rating (AC)
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
12AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 193842-1 Datasheet
Download the complete datasheet for TE Connectivity 193842-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

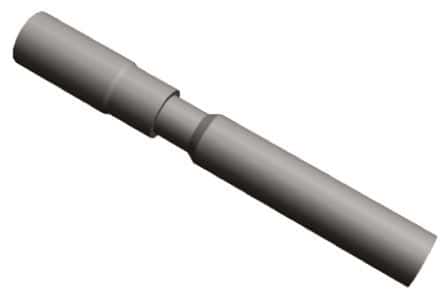

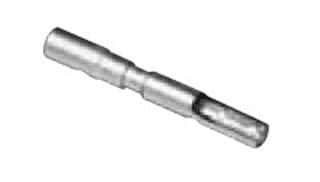

Product Images
