Female signal and power contact for wire-to-wire connector systems. Rated for 20A and 600V, this straight, cable-mount contact accepts 12AWG discrete wire with a 4.25mm insulation diameter. Constructed from copper alloy with tin plating, it operates within a temperature range of -67°C to 221°C. This component is RoHS compliant and UL approved.
Voltage Rating600V
Current Rating20A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1971779-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
20A
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Type
Signal
Current Rating
20A
ELV
Compliant
Gender
Female
Halogen Free
Halogen Free
Insulation Diameter
4.25mm
Lead Free
Lead Free
Length
16.8mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Orientation
Straight
Package Quantity
1
Packaging
Tape and Reel
Primary Type
Rectangular
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Power Triple Lock
Shielding
Unshielded
Termination
Crimp
Voltage Rating
600V
Wire/Cable Gauge
12AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1971779-1 Datasheet
Download the complete datasheet for TE Connectivity 1971779-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

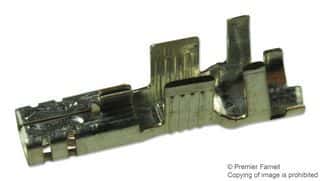

Product Images
