5-position, 5-circuit terminal block with 5mm pitch, straight orientation, and cable mount. Features a 16A current rating and 300V voltage rating, with screw termination and tin-plated bronze contacts. Housing is green, UL94 V-0 rated, and offers side stackability. Operating temperature range is -40°C to 105°C.
Voltage300V
Current16A
Voltage Rating300V
Current Rating16A
Quick Jump:
Technical Specifications
TE Connectivity 1986300-5 technical specifications.
General
Approvals
UL
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
16A
Current Rating
16A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
14.9mm
Housing Color
Green
Interlock
No (Without)
Length
25mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Circuits
5
Number of Contacts
5
Number of Levels
1
Number of Poles
5
Number of Positions
5
Number of Positions Per Level
5
Number of Rows
1
Orientation
Straight
Package Quantity
300
Packaging
Bulk
Pitch
5mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Shrouded
Yes (With)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
27.1mm
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1986300-5 Datasheet
Download the complete datasheet for TE Connectivity 1986300-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

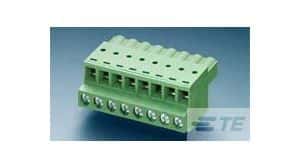

Product Images
