General purpose terminal block featuring 4 positions and 4 circuits. This straight, cable mountable unit offers a 3.81mm pitch and accepts wire gauges from 14AWG to 30AWG. Rated for 11A and 300V AC, it boasts a UL94 V-0 flammability rating and operates within a temperature range of -40°C to 110°C. Constructed with a green nylon housing and bronze contacts with tin plating, it is RoHS compliant and side stackable.
Voltage300V
Current11A
Voltage Rating300V
Current Rating11A
Quick Jump:
Technical Specifications
TE Connectivity 1986375-4 technical specifications.
General
| Color | Green |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current | 11A |
| Current Rating | 11A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | No (Without) |
| Material | Nylon |
| Max Current Rating | 11A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Number of Rows | 1 |
| Number of Ways | 4 |
| Orientation | Straight |
| Package Quantity | 150 |
| Packaging | Bulk |
| Pitch | 0.1499inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Side Stackable | Yes (With) |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1986375-4 Datasheet
Download the complete datasheet for TE Connectivity 1986375-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

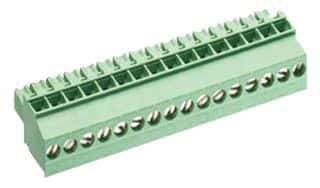

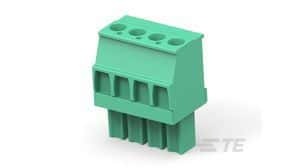

Product Images
