3-position, straight, single-level terminal block with a 15mm pitch. Features copper alloy contacts with tin plating, rated for 130A and 600V. Designed for through-hole mounting with solder termination. Operating temperature range from -40°C to 110°C. RoHS compliant.
Voltage600V
Current130A
Voltage Rating600V
Current Rating135A
Quick Jump:
Technical Specifications
TE Connectivity 1986713-3 technical specifications.
General
Color
Green
Contact Material
Copper Alloy
Contact Plating
Tin
Current
130A
Current Rating
135A
ELV
Compliant
Housing Color
Green
Interlock
No (Without)
Max Current Rating
130A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
3
Number of Levels
1
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Pin Length
5mm
Pitch
15mm
Plating
Tin, Steel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Shrouded
No (Without)
Side Stackable
Yes (With)
Tail Length
5mm
Termination
Screw
Voltage
600V
Voltage Rating
600V
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1986713-3 Datasheet
Download the complete datasheet for TE Connectivity 1986713-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

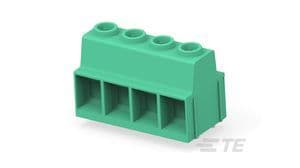

Product Images
