26-position, 2-row shrouded header with a 2.54mm pitch, designed for right-angle, through-hole PCB mounting. Features male pin contacts made of bronze with gold plating, rated for 1A current and 250V operating voltage. Offers mating alignment and is constructed with a black, UL94 V-0 flammability rated housing. Suitable for wire-to-wire connections with ribbon cable, accommodating 26-28AWG wire.
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 2-111446-0 technical specifications.
General
Approvals
UL
Board Standoff
No (Without)
Color
Black
Connector System
Wire-to-Wire
Contact Current Rating
1A
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.1mm
Contact Plating
Gold
Contact Type
Male Pin
Current Rating
1A
Depth
8.38mm
Flammability Rating
UL94 V-0
Gender
Male
Height
14.48mm
Housing Color
Black
Insulation Diameter
0.97mm
Length
1.87inch
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Contacts
26
Number of Positions
26
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Right Angle
Package Quantity
60
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
0.76um
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Row Spacing
0.1inch
Series
AMP-LATCH
Shrouded
Yes (With)
Shrouded End Dimension
3.81mm
Termination
Solder
Width
8.38mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Type
Ribbon
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity 2-111446-0 Datasheet
Download the complete datasheet for TE Connectivity 2-111446-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

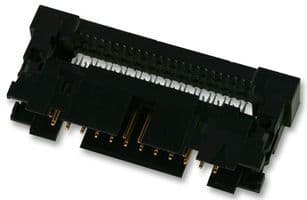

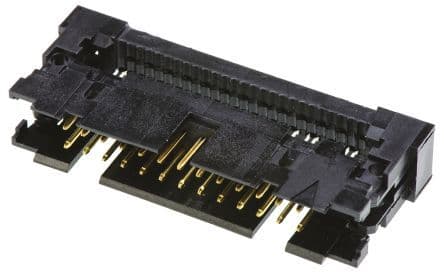

Product Images
