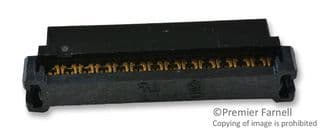

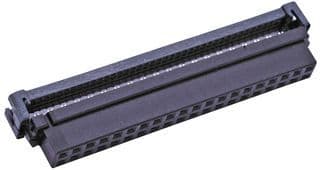

2-111626-7

26 Pos 2mm RA IDC Receptacle, 125V, 500mA, UL94 V-0

26-position, 2-row right-angle wire-to-board receptacle connector with 2mm pitch. Features IDC termination for 28AWG ribbon wire, a 500mA contact current rating, and a 125V AC voltage rating. Black, shrouded housing made of UL94 V-0 rated material. Operates from -65°C to 105°C.

Voltage Rating125V

Current Rating500mA

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 2-111626-7 technical specifications.

General

Approvals	UL
Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	500mA
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Tin, Lead
Contact Type	Female Socket
Current Rating	500mA
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.3339inch
Housing Color	Black
Insulation Diameter	0.87mm
Lead Free	Lead Free
Length	1.2272inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	125V
Mount	Free Hanging, Cable
Number of Contacts	26
Number of Positions	26
Number of Rows	2
Orientation	Right Angle
Package Quantity	40
Packaging	Tray
Pitch	0.079inch
Plating Thickness	0.76um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	AMP-LATCH
Shrouded	Yes (With)
Termination	IDC
Voltage Rating	125V
Width	5.16mm
Wire/Cable Gauge	28AWG
Wire/Cable Type	Ribbon
