This **wire-to-board connector** features a **straight, surface mount** orientation with **2 positions** and **1 row**. Designed for **power applications**, it offers a **5A contact current rating** and a **250V voltage rating**. The **male pin contacts** are constructed from **brass** with **tin plating** for mating, and the **nylon housing** is **black** with a **UL94 V-0 flammability rating**. This **lead-free and RoHS compliant** component operates within a **-40°C to 221°C** temperature range.
Voltage Rating250V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 2-1445053-2 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
5A
Depth
5.67mm
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Length
10mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Surface Mount
Number of Contacts
2
Number of Ports
1
Number of Positions
2
Number of Power Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
210
Packaging
Tape and Reel
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.062mm
Pitch
0.118inch
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Micro MATE-N-LOK
Strain Relief
No (Without)
Termination
SMD/SMT
VDE Tested
Yes
Voltage Rating
250V
Width
3.86mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-1445053-2 Datasheet
Download the complete datasheet for TE Connectivity 2-1445053-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

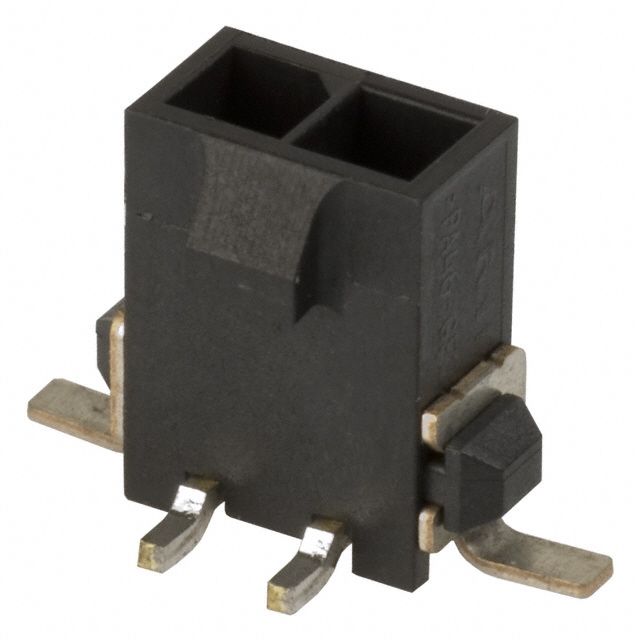

Product Images
