4-position, 1-row wire-to-board connector with straight, top-entry orientation. Features male pin contacts with brass material and gold/tin plating, rated for 5A and 250V AC. This shrouded header offers mating alignment and retention, with PCB mount alignment and retention for vertical mounting. The black housing is UL94 V-0 flammability rated and operates within a -40°C to 221°C temperature range.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 2-1445093-4 technical specifications.
General
| Approvals | CSA |
| Circuit Application | Power |
| Color | Black |
| Connector System | Wire-to-Board |
| Contact Current Rating | 5A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Contact Retention | No (Without) |
| Contact Type | Male Pin |
| Depth | 5.67mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 13mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Power Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 266 |
| Packaging | Tray |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 0.062mm |
| Pitch | 0.118inch |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Micro MATE-N-LOK |
| Termination | Solder |
| VDE Tested | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-1445093-4 Datasheet
Download the complete datasheet for TE Connectivity 2-1445093-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

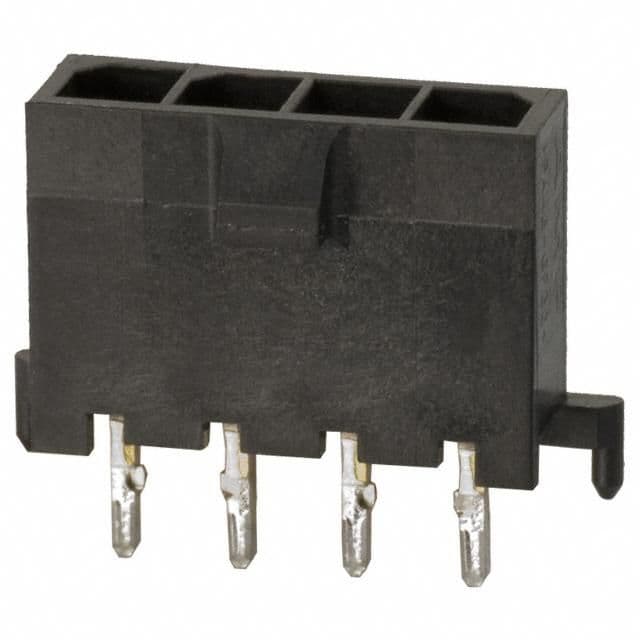

Product Images
