24-position, right-angle power connector for wire-to-board applications. Features male pin contacts with a 4.2mm pitch, 9A current rating, and tin plating for reliable power transmission. Constructed with a durable nylon housing and brass contacts, this connector offers a 600V AC voltage rating and operates within a -40°C to 221°C temperature range. Designed for through-hole mounting with solder termination, it ensures secure and robust connections.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 2-1586042-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
9A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
9A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.39inch
Housing Color
Natural
Insulation Color
Natural
Insulation Diameter
0.122inch
Insulation Material
Nylon
Length
2.031inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
24
Number of Contacts
24
Number of Ports
1
Number of Positions
24
Number of Power Positions
24
Number of Rows
2
Orientation
Right Angle
Package Quantity
70
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
PCB Thickness
0.063mm
Pitch
4.2mm
Plating Thickness
78.73um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Solder
VDE Tested
No
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
13mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-1586042-4 Datasheet
Download the complete datasheet for TE Connectivity 2-1586042-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

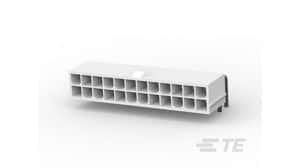

Product Images
