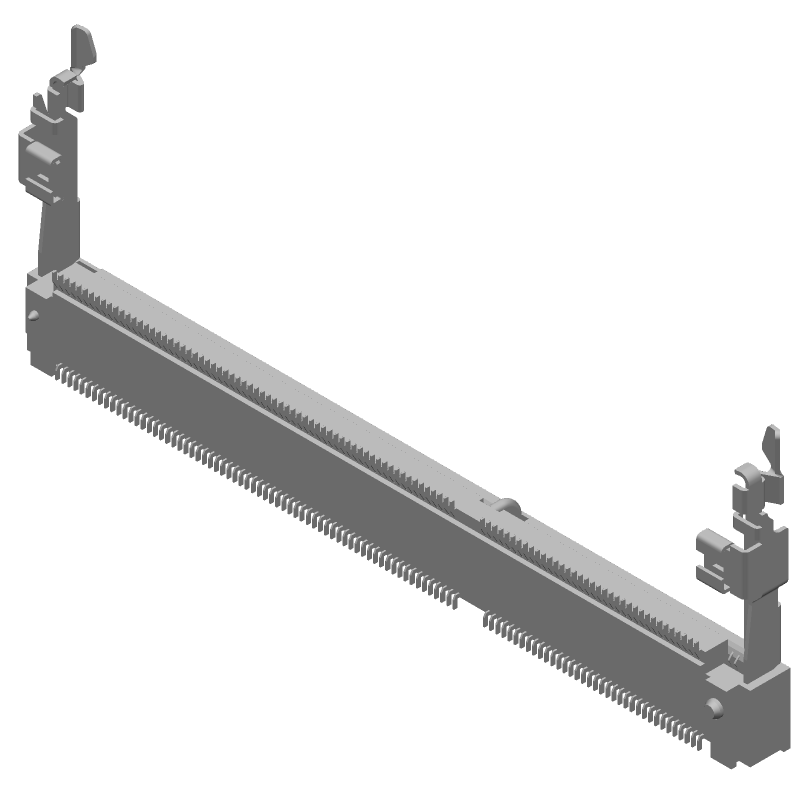

204-position, 2-row right-angle header receptacle for DDR3 SDRAM applications. Features a 0.024-inch pitch and 5.2mm stack height, designed for surface mount termination with solder. Contact current rating is 500mA, utilizing gold-plated copper alloy contacts. Constructed with a black thermoplastic housing, this component offers a wide operating temperature range of -67°C to 185°C and is RoHS compliant.
Voltage Rating1.5V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 2-2013289-2 technical specifications.
General
| Circuit Application | Power |
| Connector System | Cable-to-Board |
| Contact Current Rating | 500mA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 26.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 71.5mm |
| Max Operating Temperature | 185°C |
| Memory Type | DDR3 SDRAM, |
| Min Operating Temperature | -67°C |
| Mount | Surface Mount |
| Number of Contacts | 204 |
| Number of Positions | 204 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| PCB Mount Retention | With |
| Pitch | 0.024inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.322inch |
| Sealable | No (Without) |
| Stack Height | 5.2mm |
| Termination | Solder |
| Voltage Rating | 1.5V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-2013289-2 Datasheet
Download the complete datasheet for TE Connectivity 2-2013289-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
