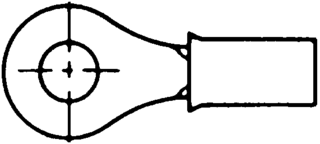

Insulated ring tongue terminal featuring copper construction with tin plating for enhanced conductivity. Designed for 18AWG wire, it offers insulated wire support with a red nylon insulation material and a 2.79mm insulation diameter. This free-hanging terminal has a 30.94mm length, 0.79mm tongue thickness, and a 0.375-inch stud diameter, rated for 300V AC. It is RoHS compliant and supplied in loose piece packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 2-320573-3 technical specifications.
General
Color
White, Red
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Government Qualified
Yes
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
2.79mm
Insulation Material
Nylon
Lead Free
Not Applicable
Length
30.94mm
Material
Copper
Mount
Free Hanging
Number of Contacts
1
Number of Holes
1
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
0.375inch
Termination
Crimp
Thickness
0.031inch
Tongue Thickness
0.79mm
Voltage Rating (AC)
300V
Wire/Cable Diameter
2.79mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-320573-3 Datasheet
Download the complete datasheet for TE Connectivity 2-320573-3 to view detailed technical specifications.
