2-5499206-1

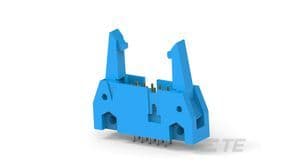

This **10-position, 2-row male header** features a **2.54mm pitch** and **straight, through-hole mounting** for vertical PCB assembly. Designed for **signal applications**, it offers a **1A current rating** and a **250V voltage rating**. The **bronze contacts** are plated with **gold or gold-palladium** for mating and **gold, tin** overall, with a **0.76um plating thickness**. Constructed with **blue thermoplastic insulation**, this shrouded header includes **mating alignment and retention** features and operates within a **-65°C to 105°C temperature range**.
