Technical Specifications

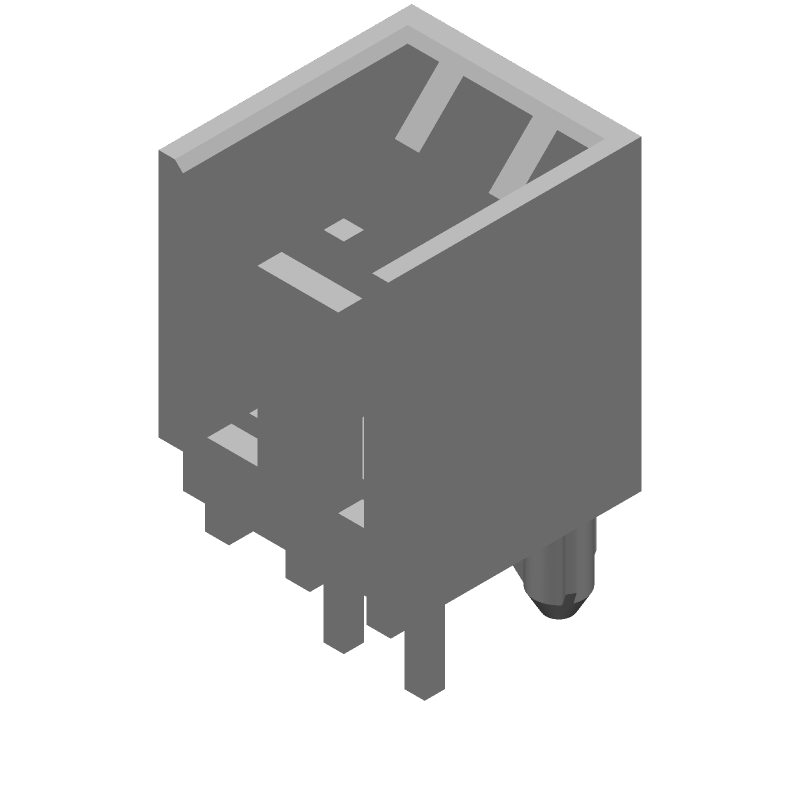

TE Connectivity 2-644486-2 technical specifications.
General
| Max Operating Temperature | 105 |
| Min Operating Temperature | -55 |
| Termination Type | SOLDER |
| Insulator Material | POLYESTER |
| Total Number of Contacts | 2 |
| Contact Gender | MALE |
| Reliability | COMMERCIAL |
| Manufacturer Series | 2-644486-2 |
| Mounting Style | STRAIGHT |
| Rated Current (Signal) | 8 |
| Dielectric Withstanding Voltage | 750VAC |
| Insulator Color | BLACK |
| UL Flammability Code | 94V-0 |
| Number Of PCB Rows | 1 |
| Number Of Connectors | ONE |
| Contact Finish Termination | Tin (Sn) |
Compliance
| RoHS | Yes |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | True |
Datasheet
TE Connectivity 2-644486-2 Datasheet
Download the complete datasheet for TE Connectivity 2-644486-2 to view detailed technical specifications.
No datasheet is available for this part.
