90-contact, right-angle receptacle connector for board-to-board applications. Features press-fit termination with a 1.9 mm pitch and 10 columns. Supports differential signaling with 30 pairs and a 25Gbps data rate, offering 60 signal and 30 ground positions. Constructed with a copper alloy contact material, gold/tin plating, and nickel underplate, rated for 750mA current and 30V DC. Operates within a -67°C to 185°C temperature range and meets UL94 V-0 flammability standards.
Current Rating750mA
MountingThrough Hole, Edge, Board
Quick Jump:
Technical Specifications
TE Connectivity 2007704-1 technical specifications.
General
Color
Black
Connector System
Board-to-Board
Contact Current Rating
750mA
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Style
Press-Fit
Current Rating
750mA
Data Rate
25Gbps
Differential Pairs per Column
3
Differential Signaling
Yes
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Guide Hardware
Yes (With)
Height
0.524inch
Housing Color
Black
Impedance
100R
Length
1.047inch
Make First / Break Last
No
Mating Alignment
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
185°C
Min Operating Temperature
-67°C
Mount
Through Hole, Edge, Board
Number of Columns
10
Number of Contacts
90
Number of Ground Positions
30
Number of Pairs
30
Number of Positions
90
Number of Rows
9
Number of Signal Positions
60
Orientation
Right Angle
Package Quantity
18
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1mm
Pitch
0.075inch
Plating Thickness
1.27um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
1.35mm
Series
IMPACT
Shrouded
No (Without)
Stackable
No
Tail Length
1.2mm
Termination
Press-Fit
Underplate Material
Nickel
DC Rated Voltage
30V
Width
0.953inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2007704-1 Datasheet
Download the complete datasheet for TE Connectivity 2007704-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

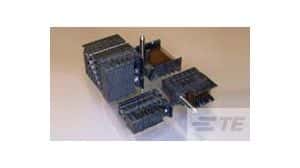

Product Images
