TE CONNECTIVITY

2007705-1

Datasheet

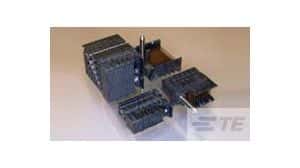

90 Pos Receptacle, 25Gbps, Press-Fit, Right Angle, Board-to-Board Connector

TE Connectivity

2007705-1

Name: 2007705-1 TE Connectivity
Brand: TE Connectivity
SKU: 2007705-1

90 Pos Receptacle, 25Gbps, Press-Fit, Right Angle, Board-to-Board Connector

90-position right-angle receptacle connector for board-to-board applications. Features press-fit termination with a 0.075-inch pitch and 1.35mm row spacing. Supports 25Gbps data rate with differential signaling and 30 differential pairs. Offers a 750mA contact current rating and 30V DC rated voltage. Constructed with a black copper alloy housing and gold/tin plated contacts. Compliant with RoHS and UL94 V-0 flammability rating.

Current Rating750mA

MountingThrough Hole, Edge, Board

Quick Jump:

Technical Specifications

TE Connectivity 2007705-1 technical specifications.

General

Color	Black
Connector System	Board-to-Board
Contact Current Rating	750mA
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Style	Press-Fit
Current Rating	750mA
Data Rate	25Gbps
Differential Pairs per Column	3
Differential Signaling	Yes
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Guide Hardware	No (Without)
Height	15mm
Housing Color	Black
Impedance	100R
Length	0.748inch
Make First / Break Last	No
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	185°C
Min Operating Temperature	-67°C
Mount	Through Hole, Edge, Board
Number of Columns	10
Number of Contacts	90
Number of Ground Positions	30
Number of Pairs	30
Number of Positions	90
Number of Rows	9
Number of Signal Positions	60
Orientation	Right Angle
Package Quantity	26
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1mm
Pitch	0.075inch
Plating Thickness	1.27um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	1.35mm
Series	IMPACT
Shrouded	No (Without)
Stackable	No
Tail Length	1.2mm
Termination	Press-Fit
Underplate Material	Nickel
DC Rated Voltage	30V
Width	0.953inch
