Right-angle board-to-board receptacle with 192 positions and 16 columns, featuring a 0.075-inch pitch and 1.35mm row spacing. Designed for differential signaling with 4 differential pairs per column, supporting data rates up to 25Gbps and a 100-ohm impedance. Contacts are copper alloy with gold and tin plating, rated for 750mA current and 30V DC. Through-hole and edge mounting with press-fit termination, a 17.3mm stack height, and a black housing.
Current Rating750mA
MountingThrough Hole, Edge, Board
Quick Jump:
Technical Specifications
TE Connectivity 2007723-1 technical specifications.
General
Color
Black
Connector System
Board-to-Board
Contact Current Rating
750mA
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Style
Press-Fit
Current Rating
750mA
Data Rate
25Gbps
Differential Pairs per Column
4
Differential Signaling
Yes
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Guide Hardware
No (Without)
Height
17.3mm
Housing Color
Black
Impedance
100R
Lead Free
Lead Free
Length
30.4mm
Make First / Break Last
No
Mating Alignment
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
185°C
Min Operating Temperature
-67°C
Max Voltage Rating (DC)
3.03kV
Mount
Through Hole, Edge, Board
Number of Columns
16
Number of Contacts
192
Number of Ground Positions
64
Number of Pairs
64
Number of Positions
192
Number of Rows
12
Number of Signal Positions
128
Orientation
Right Angle
Package Quantity
16
Packaging
Box
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1mm
Pitch
0.075inch
Plating Thickness
1.27um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
1.35mm
Series
IMPACT
Shrouded
No (Without)
Stack Height
17.3mm
Stackable
No
Tail Length
1.2mm
Termination
Press-Fit
Underplate Material
Nickel
DC Rated Voltage
30V
Width
28.2mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2007723-1 Datasheet
Download the complete datasheet for TE Connectivity 2007723-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

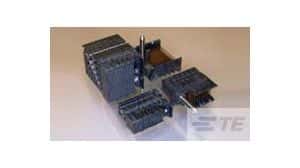

Product Images
