2007788-1

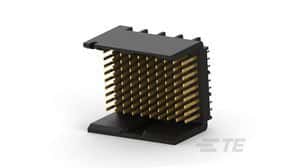

Board-to-board header with 90 positions and 9 rows, featuring a 0.075-inch pitch and 1.35mm row spacing. This straight, male connector supports differential signaling with 3 differential pairs per column, achieving a 25Gbps data rate and 100-ohm impedance. It utilizes press-fit termination with gold, tin, and matte plating over a copper alloy contact material. The black, partially shrouded housing has a height of 11.95mm and is designed for vertical PCB mounting with a 1mm PCB thickness. Operating temperature range is -67°C to 185°C, with a 30V AC voltage rating and 750mA contact current rating.
