120 Pos 10 Col 4 D-Pair Header, 25Gbps, Press-Fit, Gold/Tin

TE Connectivity

2007820-1

Name: 2007820-1 TE Connectivity
Brand: TE Connectivity
SKU: 2007820-1

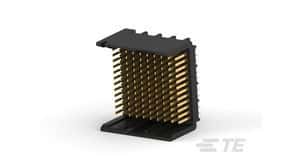

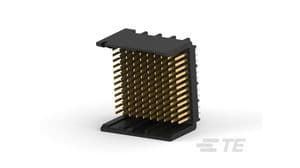

120 Pos 10 Col 4 D-Pair Header, 25Gbps, Press-Fit, Gold/Tin

Board-to-board header, male, straight orientation, 120 positions with 10 columns and 12 rows. Features press-fit termination, 0.075-inch pitch, and 1.35mm row spacing. Supports 25Gbps data rate with differential signaling and 4 differential pairs per column. Offers 750mA contact current rating and 100-ohm impedance. Black housing, UL94 V-0 flammability, and RoHS compliant.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 2007820-1 technical specifications.

General

Color	Black
Connector System	Board-to-Board
Contact Current Rating	750mA
Contact Material	Copper Alloy
Contact Plating	Gold, Tin, Matte
Contact Style	Press-Fit
Data Rate	25Gbps
Differential Pairs per Column	4
Differential Signaling	Yes
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Guide Hardware	No (Without)
Height	11.95mm
Housing Color	Black
Impedance	100R
Length	0.744inch
Make First / Break Last	No
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	185°C
Min Operating Temperature	-67°C
Mount	Through Hole
Number of Columns	10
Number of Contacts	120
Number of Ground Positions	40
Number of Pairs	40
Number of Positions	120
Number of Rows	12
Number of Signal Positions	80
Orientation	Straight
Package Quantity	26
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	1mm
Pitch	0.075inch
Plating Thickness	0.76um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	1.35mm
Series	IMPACT
Shrouded	Partially
Stack Height	11.95mm
Stackable	No
Tail Length	1.4mm
Termination	Press-Fit
Underplate Material	Nickel
Voltage Rating (AC)	30V
Width	0.819inch
