2-position, right-angle wire-to-board header with a 3mm pitch. Features male pin contacts made of brass with tin plating, rated for 5A and 250V AC. Surface mount termination with right-angle PCB mounting orientation. Constructed with a black nylon housing and insulation, offering a maximum operating temperature of 221°C. Compliant with RoHS and VDE tested.
Voltage Rating250V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 2029030-2 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
5A
Depth
11.16mm
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Length
10mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Surface Mount
Number of Contacts
2
Number of Positions
2
Number of Power Positions
2
Number of Rows
1
Operating Supply Voltage
250V
Orientation
Right Angle
Package Quantity
215
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.062mm
Pitch
0.118inch
Plating
Tin
Plating Thickness
2.54um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Micro MATE-N-LOK
Strain Relief
No (Without)
Termination
SMD/SMT
VDE Tested
Yes
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2029030-2 Datasheet
Download the complete datasheet for TE Connectivity 2029030-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

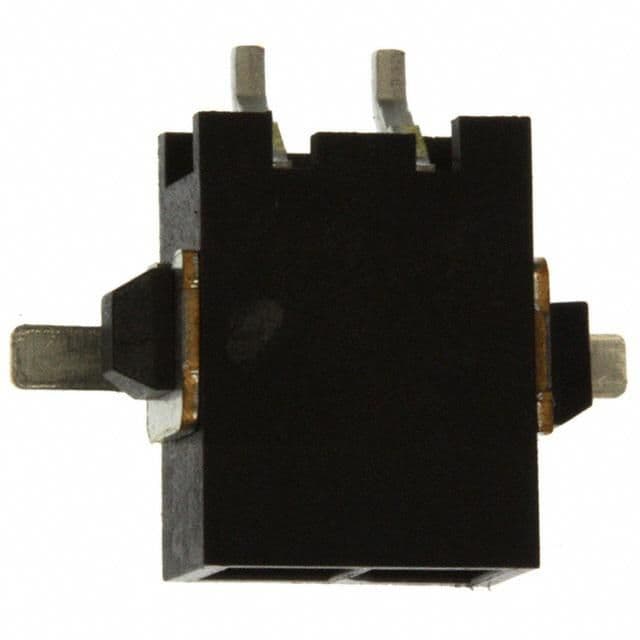

Product Images
