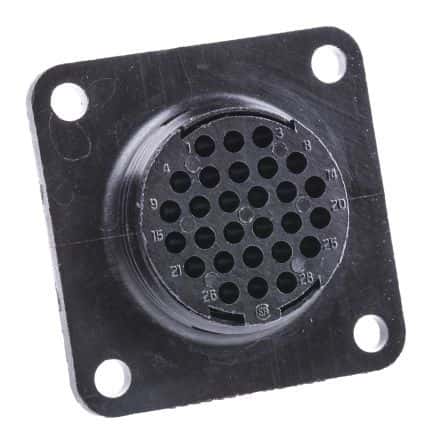

Circular receptacle assembly with 28 female crimp socket contacts, designed for panel mounting. Features a thermoplastic black housing, UL94 V-0 flammability rating, and a straight orientation. This component offers mating alignment and retention, with a 250V operating supply voltage.
Voltage Rating250V
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 206038-1 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Contact Gender
Female
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Style
Socket
Contact Type
CRIMP
Depth
36.45mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
36.45mm
Housing Color
Black
Insulation Diameter
0.068inch
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
20.55mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Mount
Panel
Number of Contacts
28
Number of Ports
1
Number of Positions
28
Number of Signal Positions
28
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Retention
Without
Plating
Thermoplastic
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 2
Shell Material
Thermoplastic
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 206038-1 Datasheet
Download the complete datasheet for TE Connectivity 206038-1 to view detailed technical specifications.
