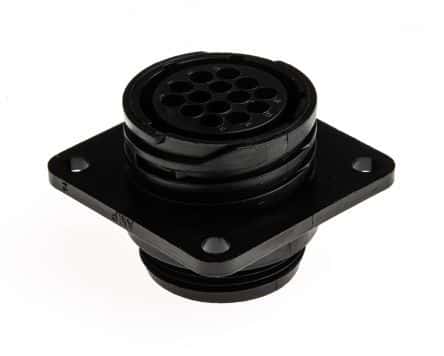

This circular receptacle connector features a black thermoplastic body and housing, designed for panel mounting with a straight orientation. It accommodates 14 female crimp-style socket contacts within a size 17 shell, offering a 250V voltage rating and a maximum operating temperature of 105°C. The connector is constructed from nylon and thermoplastic materials, is UL94 V-0 flammability rated, and meets RoHS compliance.
Voltage Rating250V
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 206043-1 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Contact Gender
Female
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Style
Socket
Contact Type
CRIMP
Depth
36.45mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
36.45mm
Housing Color
Black
Insulation Diameter
0.1inch
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
27.18mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Panel
Number of Contacts
14
Number of Ports
1
Number of Positions
14
Number of Signal Positions
14
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
PCB Mount Retention
Without
Plating
Thermoplastic
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 1
Shell Material
Nylon
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 206043-1 Datasheet
Download the complete datasheet for TE Connectivity 206043-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
