Circular connector plug assembly, CPC Series 1, size 13, featuring 9 female crimp socket contacts. This wire-to-wire connector system offers a straight, male gender with a thermoplastic body and nylon shell in black. It operates within a temperature range of -55°C to 125°C, with a voltage rating of 600V and IP65 sealing. The assembly includes mating alignment and retention, with a diameter of 27.94mm and length of 27.43mm.
Voltage Rating600V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 206708-1 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Protection | Yes (With) |
| Contact Shape | Circular |
| Contact Style | Socket |
| Contact Type | CRIMP |
| Diameter | 27.94mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 27.43mm |
| Material | Plastic |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Number of Positions | 9 |
| Number of Signal Positions | 9 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Thermoplastic |
| Radiation Hardening | No |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | CPC Series 1 |
| Shell Material | Nylon |
| Shell Size | 13 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 206708-1 Datasheet
Download the complete datasheet for TE Connectivity 206708-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

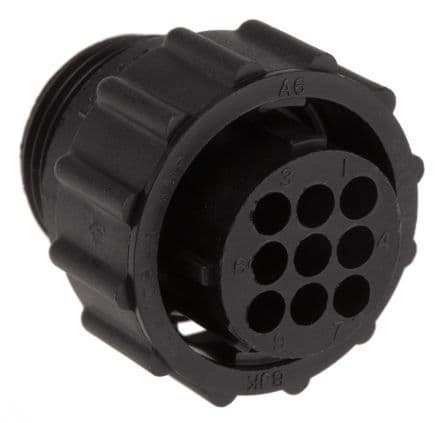

Product Images
