12-position, 4-row wire-to-wire receptacle connector with a 5mm pitch and straight orientation. Features copper contacts with gold plating, a 13A current rating, and a maximum voltage rating of 600V AC. Constructed from thermoplastic material with a red housing, it offers a temperature range of -55°C to 130°C and UL94 V-0 flammability rating. This free-hanging or panel-mount connector is RoHS compliant and VDE tested, suitable for discrete wire termination via solder.
Current Rating13A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 207018-1 technical specifications.
General
Approvals
UL
Color
Black, Red
Connector System
Wire-to-Wire
Contact Material
Copper, Gold
Contact Type
Male Pin
Current Rating
13A
Depth
33.02mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Red
Length
23.8mm
Material
Thermoplastic
Max Current Rating
14A
Max Operating Temperature
130°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Panel
Number of Contacts
12
Number of Positions
12
Number of Rows
4
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Panel Thickness
2.29mm
Pitch
5mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
5mm
Series
Metrimate
Termination
Solder
VDE Tested
Yes
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 207018-1 Datasheet
Download the complete datasheet for TE Connectivity 207018-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

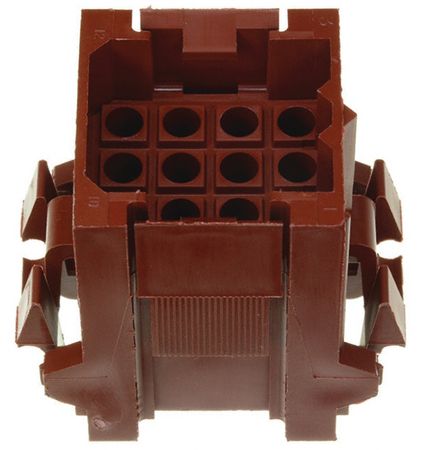

Product Images
