37-position female receptacle assembly for panel mounting, featuring a straight orientation and crimp termination. This circular connector boasts a thermoplastic body and a metal shell, both black in color, with nickel-plated zinc alloy plating. Designed for harsh environments, it offers IP65 sealing and operates within a temperature range of -55°C to 125°C, with a maximum operating voltage of 600V. The assembly includes mating alignment and retention features, with a flammability rating of UL94 V-0.
PackageMetal
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 208473-1 technical specifications.
General
Body Material
Thermoplastic
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Protection
Yes (With)
Contact Style
Socket
Contact Type
CRIMP
Depth
49.53mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
49.53mm
Housing Color
Black
Insulation Diameter
0.1inch
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
32mm
Material
Metal
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Contacts
37
Number of Ports
1
Number of Positions
37
Number of Signal Positions
37
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
10
Packaging
Box
PCB Mount Retention
Without
Plating
Nickel, ZINC ALLOY
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CMC Series 1
Shell Material
Zinc
Shell Plating
Nickel
Shell Size
28
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 208473-1 Datasheet
Download the complete datasheet for TE Connectivity 208473-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

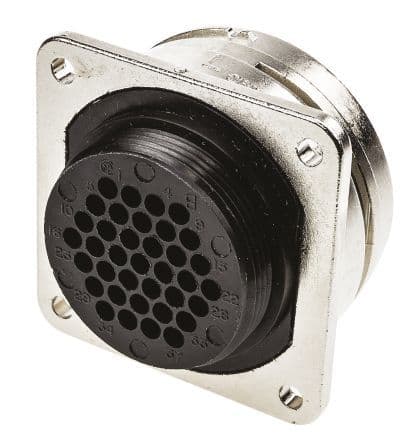

Product Images
