3-position, 1-row wire-to-board cable assembly featuring 18AWG discrete wire with a 2.1mm insulation diameter. Male plug connector with copper alloy contacts plated in tin, offering mating alignment and retention. Rated for 250V AC/DC, with a maximum operating temperature of 221°C and a pitch of 3.5mm. Features UL94 V-0 flammability rating and IP67 sealing.
Voltage Rating250V
Quick Jump:
Technical Specifications
TE Connectivity 2106378-3 technical specifications.
General
Color
Black
Connector Type A
Plug
Connector Type B
Wire Leads
Contact Material
Copper Alloy
Contact Plating
Tin
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Diameter
2.1mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Number of Ways
3
Package Quantity
50
Packaging
Bag
Pitch
3.5mm
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
SlimSeal
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating
250V
DC Rated Voltage
250V
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2106378-3 Datasheet
Download the complete datasheet for TE Connectivity 2106378-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

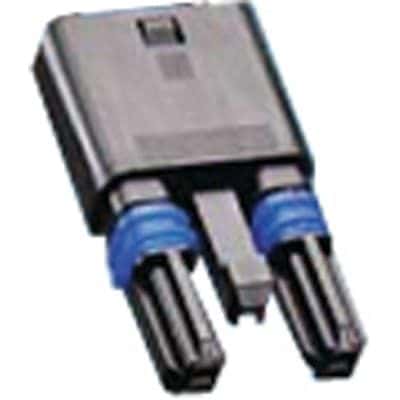

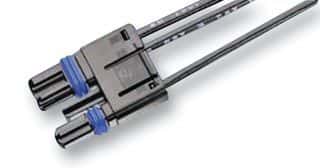

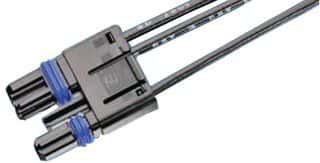

Product Images
