TE CONNECTIVITY

2132415-9

Datasheet

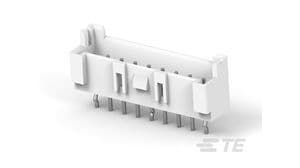

9 Pos 2.5mm Pitch Shrouded Header, 4.2A, Straight, Thru-Hole

TE Connectivity

2132415-9

Name: 2132415-9 TE Connectivity
Brand: TE Connectivity
SKU: 2132415-9

9 Pos 2.5mm Pitch Shrouded Header, 4.2A, Straight, Thru-Hole

9-position shrouded header with a 2.5mm pitch, designed for wire-to-board connectivity. Features brass male pin contacts with tin plating, rated for 4.2A and 250V AC. This straight, top-entry, through-hole mounted component has a 3.6mm mating length and 3.4mm tail length, with a 8.8mm height and 6.4mm width. Housing is white, contact material is brass, and it is RoHS compliant with a UL94 V-0 flammability rating.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 2132415-9 technical specifications.

General

Backwall/Post Interruptions	No (Without)
Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	4.2A
Contact Material	Brass
Contact Mating Length	3.6mm
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Round
Contact Style	Straight
Contact Type	Male Pin
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	8.8mm
Housing Color	White
Length	0.98inch
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	131°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	9
Number of Positions	9
Number of Rows	1
Orientation	Straight
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	2.5mm
Plating Thickness	2.03um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Selectively Loaded	No (Without)
Series	Economy Power
Tail Length	3.4mm
Termination	Solder
Width	6.4mm
