Circular connector plug assembly, Series 5, size 17, featuring a male, straight, wire-to-wire configuration with 3 power positions. Constructed with a black nylon/polyamide body and plastic insulation, this connector offers IP65, waterproof, water-resistant, and dust-tight ratings. It supports a maximum operating voltage of 250V and operates within a temperature range of -55°C to 105°C. Approvals include UL, CSA, and VDE, with a UL94 V-0 flammability rating.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 213905-1 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Nylon, Polyamide
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Style
Pin
Contact Type
CRIMP
Diameter
34.26mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Diameter
6.6mm
Insulation Material
Plastic
Lead Free
Lead Free
Length
40.87mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Number of Power Positions
3
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
100
Packaging
Bag
Plating
Plastic
Radiation Hardening
No
Ratings
IP65, Waterproof, Water Resistant, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
CPC Series 5
Shell Material
Nylon
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 213905-1 Datasheet
Download the complete datasheet for TE Connectivity 213905-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

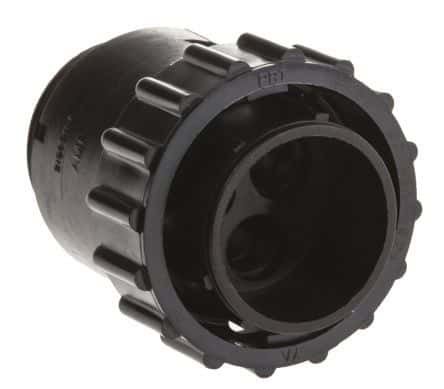

Product Images
