SMA Male Plug for .086 cable, featuring a stainless steel body with passivation and a gold-plated copper center contact. This straight, crimp-termination connector operates from 0 to 18 GHz with a 50-ohm impedance and a maximum frequency of 18 GHz. It boasts a PTFE dielectric, a voltage rating of 335V, and a maximum insertion loss of 0.3dB. Rated for 500 mating cycles, it operates within a temperature range of -65°C to 165°C and is RoHS compliant.
Frequency18GHz
PackageSMA
Voltage Rating335V
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 227868-1 technical specifications.
General
Body Material
Stainless Steel
Body Plating
Passivated
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
ELV
Compliant
Frequency
18GHz
Gender
Male
Housing Color
Silver
Impedance
50R
Insertion Loss
0.3dB
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
15.55mm
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Cable
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 18 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Plating
Passivated
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
Yes
Series
AMP
Termination
Crimp
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 227868-1 Datasheet
Download the complete datasheet for TE Connectivity 227868-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

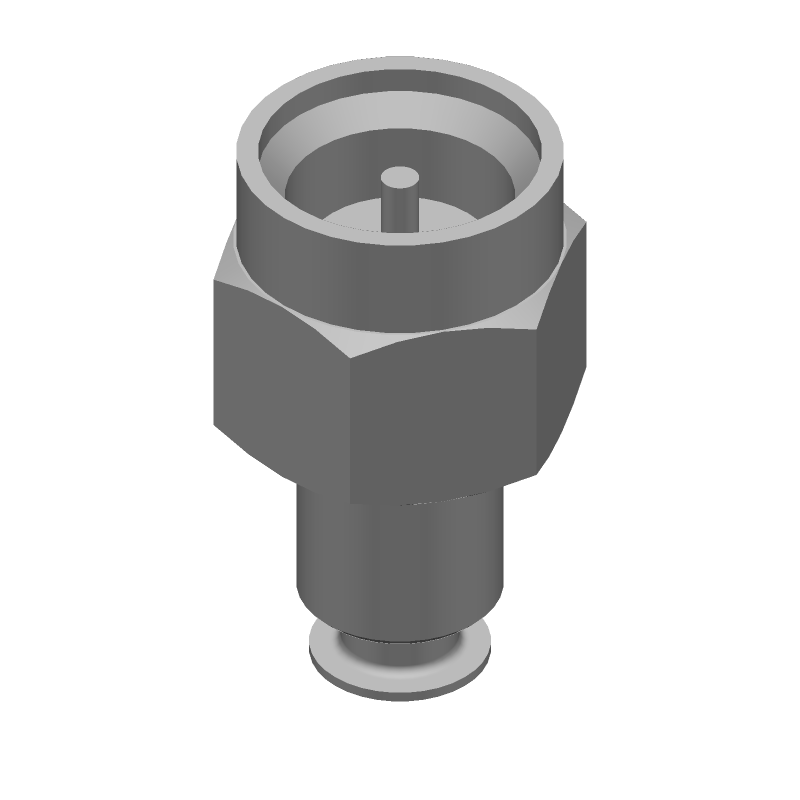

Product Images
