280358

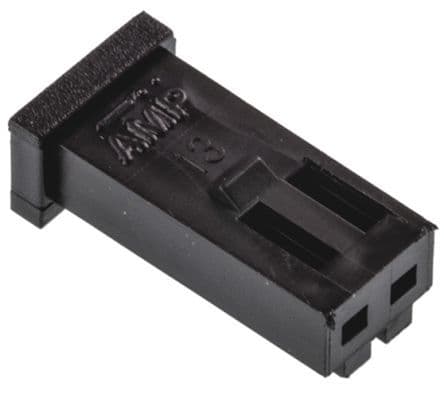

Single row, 2-position female header and receptacle for board-to-board applications. Features a 2.54mm pitch and 0.1-inch row spacing, with a 3A current rating. Constructed with a black copper alloy housing and gold-plated contacts, this component offers mating alignment, connector lock, and retention. Operating temperature range is -65°C to 105°C, with UL94 V-1 flammability rating and lead-free, RoHS compliance. Designed for crimp termination of wire gauges 26-28 AWG.
