14-position, 2-row shrouded header with 2.54mm pitch. Features straight, through-hole mounting with solder termination. Male pin contacts made of brass with gold plating, offering a 3.1mm post length. Housing is black, UL94 V-0 flammability rated, and the component is RoHS and ELV compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 281272-1 technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Contact Post Length
3.1mm
Contact Type
Male Pin
Depth
9.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Length
25.4mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMP-LATCH
Shrouded
Yes (With)
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 281272-1 Datasheet
Download the complete datasheet for TE Connectivity 281272-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

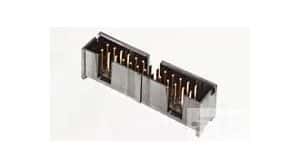

Product Images
