20-position shrouded header with a 2.54mm pitch, featuring straight, through-hole mounting and a vertical PCB orientation. Male pin contacts made of gold-plated brass offer a 3.1mm post length. The black housing ensures UL94 V-0 flammability rating and includes mating alignment features.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 281274-1 technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Contact Post Length
3.1mm
Contact Type
Male Pin
Depth
9.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Length
33.02mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mount
Through Hole
Number of Contacts
20
Number of Poles
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
70
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMP-LATCH
Shrouded
Yes (With)
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 281274-1 Datasheet
Download the complete datasheet for TE Connectivity 281274-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

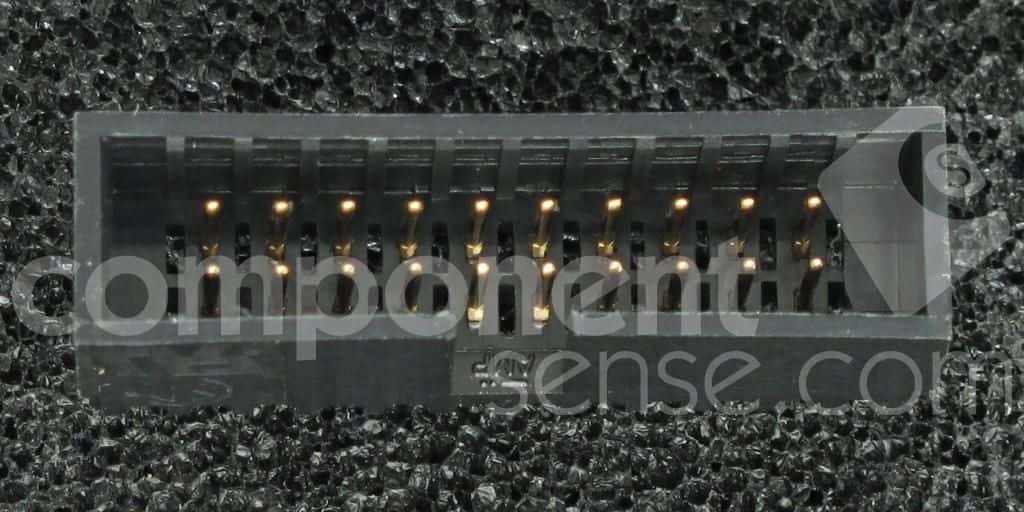

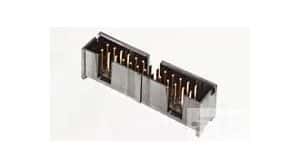

Product Images
