20-position shrouded header with a 2.54mm pitch, featuring straight, through-hole mounting for vertical PCB orientation. Male pin contacts made of brass with gold plating ensure reliable mating, offering a contact post length of 3.05mm. The PBT insulation material in black housing provides UL94 V-0 flammability rating and RoHS compliance.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 281274-2 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Contact Post Length
3.05mm
Contact Shape
Square
Contact Type
Male Pin
Depth
9.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Color
Black
Insulation Material
PBT
Length
33.02mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mount
Through Hole
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
350
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
AMP-LATCH
Shrouded
Yes (With)
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 281274-2 Datasheet
Download the complete datasheet for TE Connectivity 281274-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

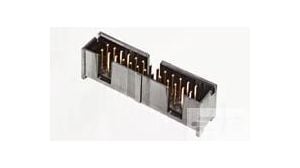

Product Images
