4-position shrouded header with 2.54mm pitch, designed for through-hole mounting. Features male pin contacts with bronze material and tin plating, rated for 3A current. Offers a contact mating length of 6.75mm and a lead length of 2.9mm. Operates within a temperature range of -55°C to 105°C and boasts a UL94 V-0 flammability rating. This blue, RoHS-compliant component is supplied in bulk packaging.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 281739-2 technical specifications.
General
Board Standoff
No (Without)
Color
Blue
Contact Current Rating
3A
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.75mm
Contact Plating
Tin
Contact Post Length
2.9mm
Contact Protection
Yes (With)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Housing Color
Blue
Keyed
No
Lead Length
2.9mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
2
Package Quantity
500
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
HE13/HE14
Shrouded End Dimension
1.27mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 281739-2 Datasheet
Download the complete datasheet for TE Connectivity 281739-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

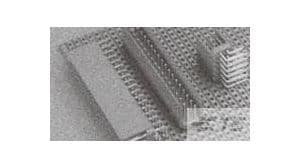

Product Images
