This shrouded header is a 6-position, 2-row board-to-board connector with a 2.54mm pitch. It features male pin contacts made of bronze with tin plating and a current rating of 3A. The header has a straight, through-hole mounting orientation and a blue thermoplastic housing. It operates within a temperature range of -55°C to 105°C and is UL94 V-0 flammability rated.
Voltage Rating500V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 281739-3 technical specifications.
General
Board Standoff
No (Without)
Color
Blue
Contact Current Rating
3A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.75mm
Contact Plating
Tin
Contact Post Length
2.9mm
Contact Protection
Yes (With)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
7.62mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
Housing Color
Blue
Insulation Color
Blue
Insulation Material
Thermoplastic
Keyed
No
Lead Length
2.9mm
Lead Pitch
2.54mm
Length
7.62mm
Material
Glass, Polyester
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Mating Cycles
30
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
6
Number of Poles
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
4000
Packaging
Box
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
HE13/HE14
Shrouded End Dimension
1.27mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
DC Rated Voltage
500V
Working Voltage
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 281739-3 Datasheet
Download the complete datasheet for TE Connectivity 281739-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

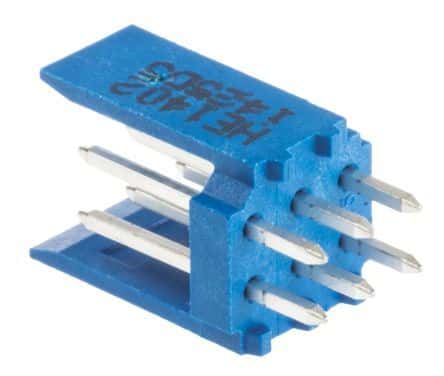

Product Images
