4-position, 1-row wire-to-wire connector with female, straight orientation and crimp termination. Features a 6mm pitch, 14A current rating, and 24V DC voltage rating. Constructed from black polyamide housing with tin-plated female tab contacts. Rated IP67 for environmental protection, operating between -40°C and 125°C. Designed for signal applications, accommodating wire gauges from 16AWG to 20AWG.
Voltage Rating24V
Current Rating14A
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 282106-1 technical specifications.
General
Circuit Application
Signal
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Plating
Tin
Contact Type
Tab
Current Rating
14A
Depth
42mm
Gender
Female
Height
1.654inch
Housing Color
Black
Hybrid Connector
No
Length
1.252inch
Material
Polyamide
Mating Tab Width
0.059inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Free Hanging
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
900
Packaging
Box
Pitch
6mm
Polarized
Yes
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Superseal
Serviceable
Yes
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating
24V
DC Rated Voltage
24V
Width
0.543inch
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282106-1 Datasheet
Download the complete datasheet for TE Connectivity 282106-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

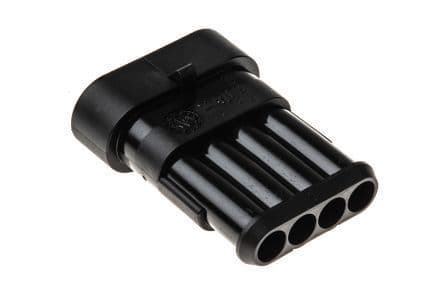

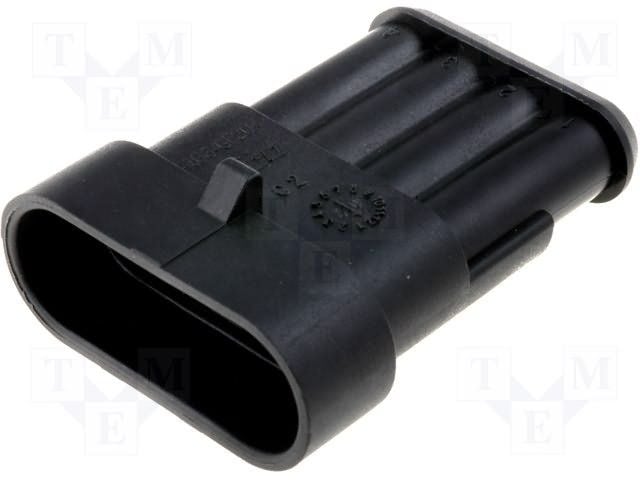

Product Images
