Five-position, straight, male wire-to-wire connector for signal applications. Features a 6mm pitch, 14A current rating, and 24V DC voltage rating. Constructed with a silicone housing and tin-plated tab contacts, this connector offers IP67 sealing and a maximum operating temperature of 125°C.
Voltage Rating24V
Current Rating14A
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 282107-1 technical specifications.
General
Circuit Application
Signal
Color
Black
Connector System
Wire-to-Wire
Contact Plating
Tin
Contact Type
Tab
Current Rating
14A
Depth
42mm
ELV
Compliant
Gender
Male
Height
1.654inch
Housing Color
Black
Hybrid Connector
No
Lead Free
Not Applicable
Length
1.488inch
Material
Silicone
Mating Tab Width
0.059inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Straight
Package Quantity
700
Packaging
Box
Pitch
6mm
Polarized
Yes
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
Superseal
Serviceable
No
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating
24V
DC Rated Voltage
24V
Width
0.543inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282107-1 Datasheet
Download the complete datasheet for TE Connectivity 282107-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

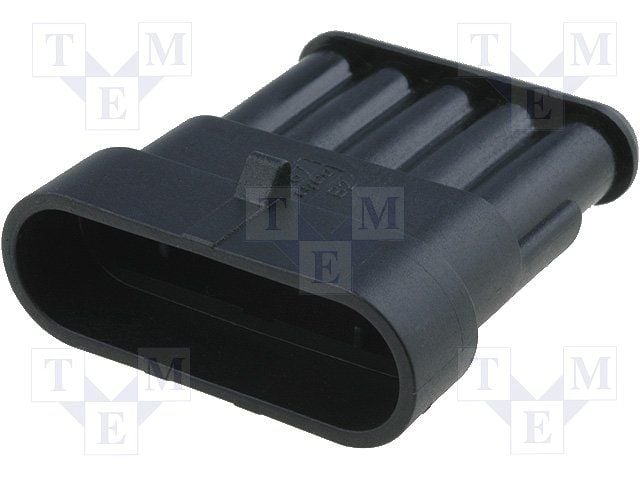

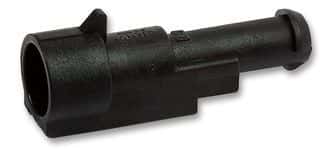

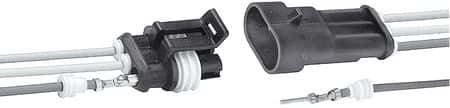

Product Images
