3-position, right-angle, cable-mount terminal block with 10.16mm pitch. Features 15A current rating and 600V voltage rating. Constructed with green housing and bronze contacts with tin plating. Operating temperature range from -40°C to 110°C. UL94 V-0 flammability rating.
Voltage600V
Current15A
Voltage Rating600V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 282809-3 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
Depth
18.4mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Lead Free
Not Applicable
Length
25.4mm
Max Current Rating
15A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
600V
Mount
Free Hanging, Cable
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Right Angle
Package Quantity
150
Packaging
Bulk
Pitch
0.4inch
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
No (Without)
Termination
Screw
Voltage
600V
Voltage Rating
600V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282809-3 Datasheet
Download the complete datasheet for TE Connectivity 282809-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

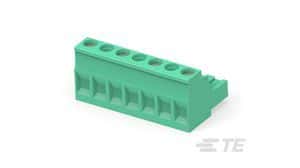

Product Images
