Shrouded Header, 5 positions, 5.08mm pitch, straight orientation, through-hole mount with solder termination. Features a 15A current rating, 300V AC voltage rating, and operates within a -40°C to 110°C temperature range. Constructed with copper alloy contacts plated in tin, housed in green UL94 V-0 compliant material. This side-stackable connector is lead-free and RoHS compliant.
Voltage300V
Current15A
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 282825-5 technical specifications.
General
| Closed End | Yes (With) |
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 15A |
| Depth | 8.35mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | No (Without) |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Number of Positions Per Level | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 150 |
| Packaging | Box |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Shrouded | Yes (With) |
| Side Stackable | Yes (With) |
| Tail Length | 3.5mm |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating (AC) | 300V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 282825-5 Datasheet
Download the complete datasheet for TE Connectivity 282825-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

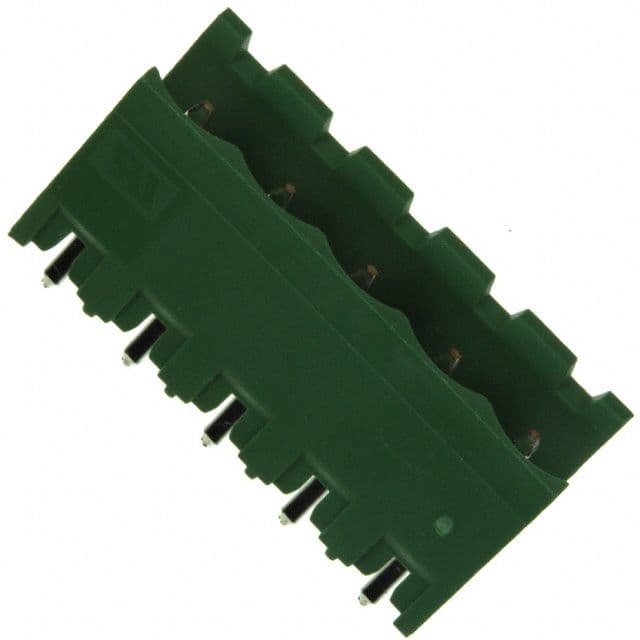

Product Images
