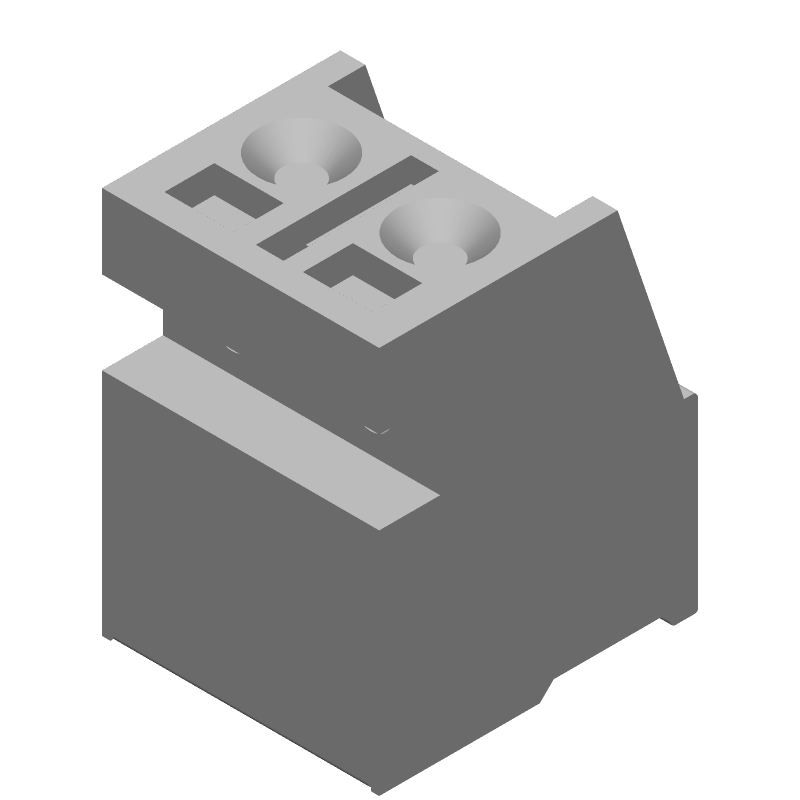

2-position, 5mm pitch terminal block for cable mounting. Features screw termination with bronze contacts plated in tin, rated for 12A and 300V AC. Constructed with a green, UL94 V-0 flammability rated housing, this screwless terminal block offers a straight/right angle orientation. Operating temperature range is -40°C to 105°C.
Voltage300V
Current12A
Current Rating12A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 282830-2 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
13.9mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Lead Free
Not Applicable
Length
10mm
Max Current Rating
12A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Free Hanging, Cable
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Straight/Right Angle
Package Quantity
300
Packaging
Bulk
Pitch
5mm
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
No (Without)
Termination
Screw
Voltage
300V
Voltage Rating (AC)
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282830-2 Datasheet
Download the complete datasheet for TE Connectivity 282830-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
