7-position, 5.08mm pitch terminal block for wire-to-board applications. Features straight, through-hole solder termination with brass contacts plated in tin. Rated for 13.5A current and 250V AC voltage, with a maximum operating voltage of 300V. Housing is green, UL94 V-0 flammability rated, and includes side stackability.
Voltage300V
Current13.5A
Voltage Rating250V
Current Rating13.5A
Quick Jump:
Technical Specifications
TE Connectivity 282837-7 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Connector System | Wire-to-Board |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 13.5A |
| Current Rating | 13.5A |
| Depth | 8.2mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | Yes (With) |
| Lead Free | Lead Free |
| Length | 36.16mm |
| Max Current Rating | 13.5A |
| Max Supply Voltage (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 7 |
| Number of Contacts | 7 |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Number of Positions Per Level | 7 |
| Number of Rows | 1 |
| Operating Supply Voltage | 300V |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Plating | Brass |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Side Stackable | Yes (With) |
| Tail Length | 3.5mm |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 250V |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 282837-7 Datasheet
Download the complete datasheet for TE Connectivity 282837-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

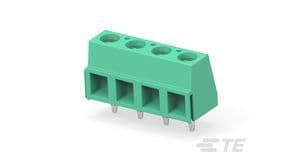

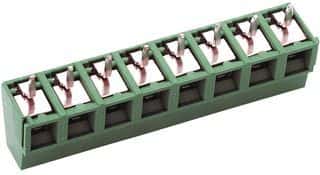

Product Images
