6-position, 1-level general terminal block with 5.08mm pitch. Features brass contacts with tin plating, rated for 17.5A and 300V. Through-hole mounting with screw termination. Green housing, UL94 V-0 flammability rating, and lead-free construction. Includes interlock and side stackable features.
Voltage300V
Current17.5A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 282847-6 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 17.5A |
| Current Rating | 17.5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | Yes (With) |
| Lead Free | Lead Free |
| Max Current Rating | 17.5A |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Plating | Brass |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | Yes (With) |
| Series | Buchanan |
| Side Stackable | Yes (With) |
| Tail Length | 0.15inch |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 282847-6 Datasheet
Download the complete datasheet for TE Connectivity 282847-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

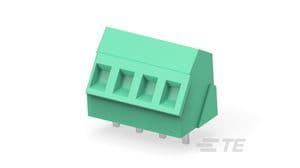

Product Images
