8-position, 1-row, straight terminal block with 5mm pitch. Features brass contacts with tin plating, rated for 24A and 300V AC. Constructed from green polyamide housing, it offers screwless termination and through-hole mounting. Includes interlock and side stackable capabilities, with a 3.5mm tail length.
Voltage300V
Current24A
Voltage Rating300V
Current Rating24A
Quick Jump:
Technical Specifications
TE Connectivity 282856-8 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
24A
Current Rating
24A
Depth
19mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Green
Interlock
Yes (With)
Length
40mm
Material
Polyamide
Max Current Rating
24A
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Carton
Pitch
5mm
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
10mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 282856-8 Datasheet
Download the complete datasheet for TE Connectivity 282856-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

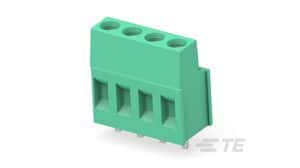

Product Images
