PCB Mount Terminal Block, 3 circuits, 3 positions, straight orientation, 24A current rating, 600V voltage rating. Features brass contacts with tin plating, a green housing, and a 0.394-inch pitch. Operates from -40°C to 105°C, with UL94 V-0 flammability. Includes interlock functionality and screwless terminal block design.
Voltage600V
Current24A
Voltage Rating600V
Current Rating24A
Quick Jump:
Technical Specifications
TE Connectivity 282858-3 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 24A |
| Current Rating | 24A |
| Depth | 10mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | Yes (With) |
| Length | 25.5mm |
| Max Current Rating | 24A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 600V |
| Max Voltage Rating (AC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 150 |
| Packaging | Box |
| Pitch | 0.394inch |
| Plating | Brass |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | Yes (With) |
| Series | Buchanan |
| Side Stackable | No (Without) |
| Tail Length | 3.5mm |
| Termination | Solder |
| Voltage | 600V |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 282858-3 Datasheet
Download the complete datasheet for TE Connectivity 282858-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

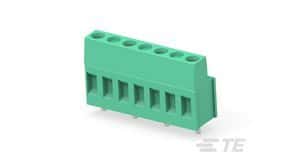

Product Images
