General purpose terminal block with 6 positions and a 3.5mm pitch. Features straight, through-hole mounting with solder termination. Rated for 12A and 300V AC, with a brass contact material and tin plating. Housing is green, UL94 V-0 flammability rated, and offers side stackability. Operating temperature range is -40°C to 105°C.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
TE Connectivity 284391-6 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
8.2mm
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
Yes (With)
Length
21.5mm
Max Current Rating
12A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
6
Number of Contacts
6
Number of Levels
1
Number of Positions
6
Number of Positions Per Level
6
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Box
Pitch
3.5mm
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 284391-6 Datasheet
Download the complete datasheet for TE Connectivity 284391-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

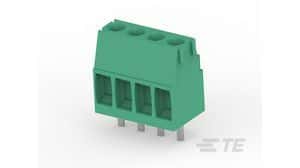

Product Images
