Wire-to-Board connector featuring a straight, through-hole mount design with 2 circuits and 2 positions. This green, shrouded terminal block offers a 12A current rating and a 300V voltage rating, operating between -40°C and 105°C. Constructed with brass contacts plated in tin, it supports a single level with side stackable capabilities. Termination is via solder, and it is RoHS and ELV compliant.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
TE Connectivity 284392-2 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Connector System | Wire-to-Board |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 12A |
| Current Rating | 12A |
| Depth | 8.2mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | Yes (With) |
| Lead Free | Lead Free |
| Length | 8.12mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 300V |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Rows | 1 |
| Operating Supply Voltage | 300V |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Box |
| Pitch | 0.1499inch |
| Plating | Brass |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Shrouded | Yes (With) |
| Side Stackable | Yes (With) |
| Tail Length | 3.5mm |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 284392-2 Datasheet
Download the complete datasheet for TE Connectivity 284392-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

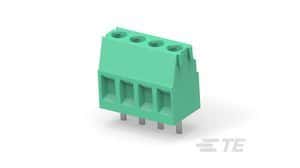

Product Images
